2G-HTS Tapes

Introduction

Shanghai Superconductor's ReBCO tapes (wires), produced with physical vapor deposition, have world-leading low-temperature and high-field electrical properties, first-class self-field current density, excellent magnet winding performance, and extremely low AC loss. The tapes (wires) can be widely applied in various fields such as electric power, transportation, energy, medical treatment, and high-energy physics.

Core Structure

*Not drawn to scale; lamination not shown.

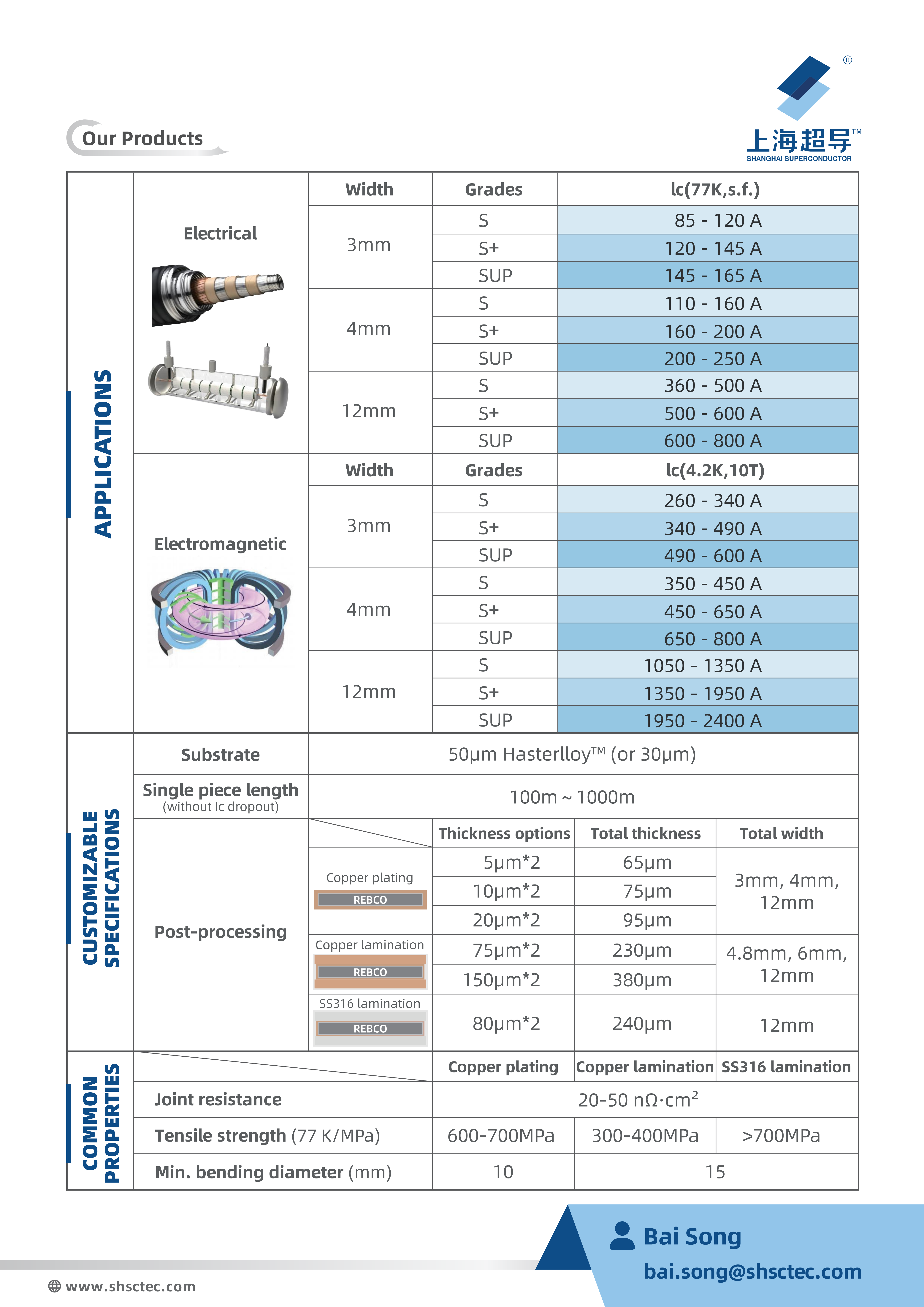

Product Specification

APPLICATIONSElectricalWidthGradesIc(77K, s.f.)
UtilityUtility3mmS85-120A
S+120-145A
SUP145-165A
4mmS110-160A
S+160-200A
SUP200-250A
12mmS360-500A
S+500-600A
SUP600-800A
ElectromagneticWidthGradesIc(42K, 10T)
Superconducting magnetSuperconducting magnet3mmS260-340A
S+340-490A
SUP490-600A
4mmS350-450A
S+450-650A
SUP650-800A
12mmS1050-1350A
S+1350-1950A
SUP1950-2400A
CUSTOMIZABLE
SPECIFICATIONS		Substrate50 μm Hastelloy™ (or 30 μm)
Single piece length
(without Ic dropout)		100m~1000m
Post-processing
Thickness optionsTotal thicknessTotal width
Copper plating5 μm*265 μm3mm, 4mm, 12mm
10 μm*275 μm
20 μm*295 μm
Copper lamination75 μm*2230 μm4.8mm, 6mm, 12mm
150 μm*2380 μm
SS316 lamination80 μm*2240 μm12mm
COMMON
PROPERTIES
Copper platingCopper laminationSS316 lamination
Joint resistance20-50 nΩ·cm²
Tensile strength (77K/MPa)600-700 MPa300-400 MPa>700 MPa
Min. Bending diameter (mm)1015
